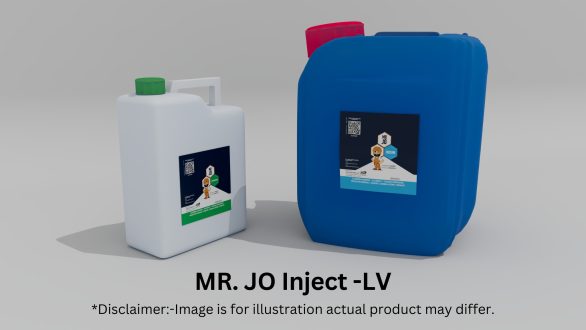

Mr. JO Inject – LV

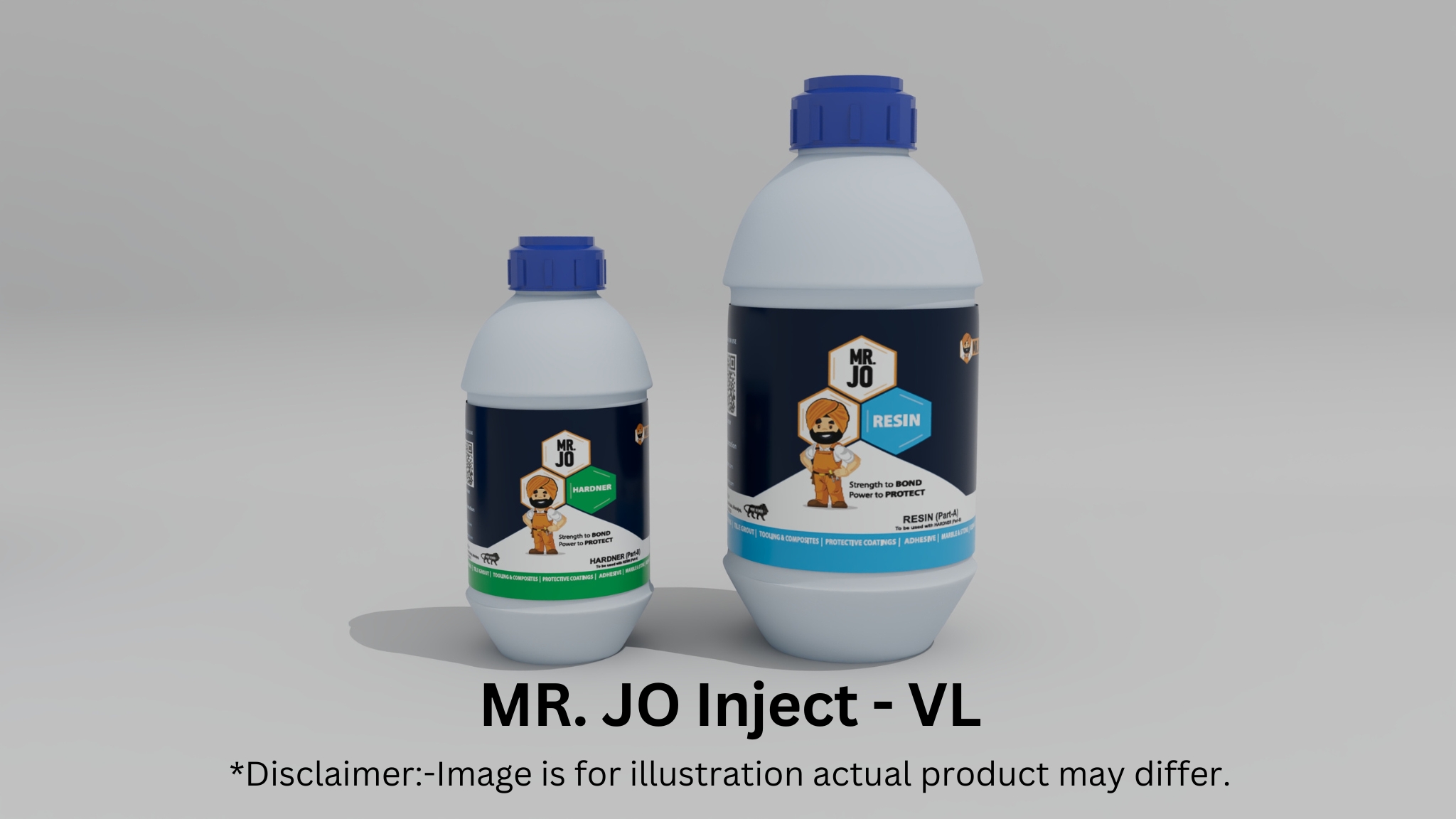

MR. JO Inject – VL
MR. JO Inject – UPS

₹1,040.00 – ₹19,315.00 Inclusive of all taxes

Two component very low viscosity 30 PHR epoxy injection grout system

SKU: INJ/LV
Clear

Description

Mr. JO Inject – LV is a two-part epoxy grout, solvent-free, with low viscosity. You can use it for general repair jobs and structural crack fixes. Additionally, it flows easily into small gaps and works well on damaged concrete. Also, it cures fast and holds strong. So, it’s a simple and smart solution for many repair needs.

  • Color: Pale yellow
  • Pot life @25°C: 100-120 mins
  • Mixing Ratio: 100:50 PBW
  • Mixture consistency: Low viscosity liquid
  • Optics: Transparent / Translucent
  • Minute gap filing
  • Honey comb
  • Structural strengthening
Surface Preparation
  • The mixture should be The system should be applied on a clean, rough and dry surface. For good results, it is required to clean the area of debris, loose particles, damaged concrete and prepare the surface for the epoxy treatment.
Application Method
  • Fix nipples for injection grouting in the damaged portions using epoxy mortar.
  • Fix the remaining gaps and holes with same mortar.
  • Use Part A & Part B in ratio 100:50 pbw. Mix the two components in small batches thoroughly for at least 2minutes.
  • Begin the injection process by slowly pumping the grout into the nipples using the injection pump. Continue injecting the grout until the cracks or voids are completely filled, and the grout begins to flow out of adjacent nipples.
  • Allow the material to cure for at least 24 hours before putting to use.
Login to Download TDS
Q1. What is MR. JO Inject – LV used for?

A1. MR. JO Inject – LV is a low-viscosity epoxy injection system for fine cracks and micro-defects in concrete.

Q2. What is the difference between MR. JO Inject-LV and MR. JO Inject-MV?

A2. LV is more flowable, ideal for narrow cracks (<0.5 mm), while MV is for wider or general-purpose injection.

Q3. What is the mix ratio for MR. JO Inject-LV?

A3. 100:50 by weight (resin: hardener)

Q4. Can MR. JO Inject-LV be injected using gravity or syringe methods?

A4. Yes — it is suitable for low-pressure and gravity-fed injection in small cracks.

Q5. Is it suitable for slab crack healing?

A5. Yes, particularly for fine cracks in floor slabs or parking decks.

Q6. How does MR. JO Inject-LV cure? A6.

Pot life: ~45 minutes Handling strength: ~4–6 hours Full cure: ~24 hours

Q7. Can MR. JO Inject-LV be used in structural elements?

A7. Yes, for minor structural crack healing and durability improvement.

Q8. What is the appearance after cure?

A8. Typically clear to amber. Invisible under coatings or toppings.

Q9. Should surfaces be dry before using MR. JO Inject-LV?

A9. Yes — dry substrates are essential. For wet conditions, use MR. JO Inject – UPS.

Q10. How is it packed for site use?

A10. Supplied in pre-measured containers for ease of handling.
